PCB Assembly
Fast, one-stop SMT & THT PCB assembly — from prototype to mass production
Service Scope
Core Capabilities
Applications

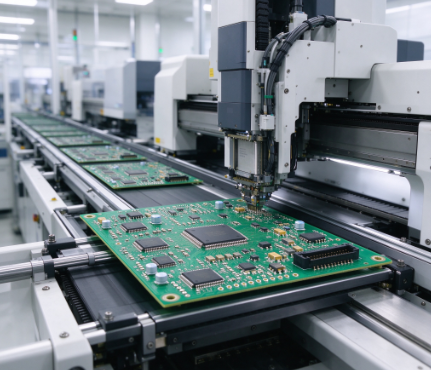

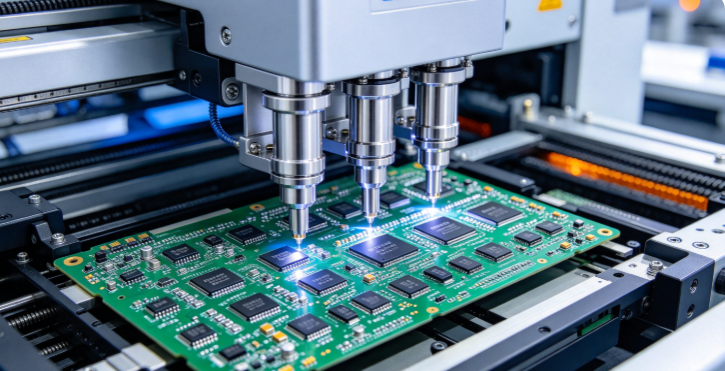

SMT Surface Mount Assembly
Precise surface-mount assembly for PCBs of all volumes, from prototype batches to mass production.
THT Through-hole Soldering
Robust through-hole soldering for connectors, transformers and other heavy-duty through-hole components.

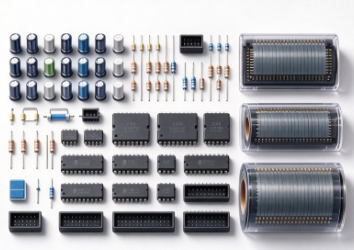

BOM & Component Sourcing
Full BOM management and component sourcing of active, passive and electromechanical parts from verified suppliers.

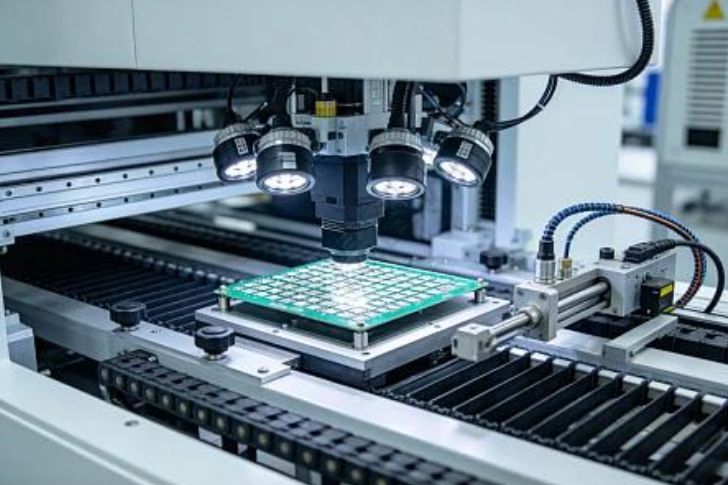

AOI / X-Ray Quality Inspection
Strict AOI and X-ray inspection to detect hidden soldering defects and guarantee assembly quality.
Prototype to Mass Production
Seamless transition from quick PCB prototypes to stable medium & high-volume manufacturing.
Fast Turnaround Available
Flexible lead times to meet your tight project schedules for urgent PCBA orders.
Key Service Features
🟢 SMT, THT & Mixed SMT+THT assembly
🟢 BGA, fine pitch components & complex PCBA assembly
🟢 BOM component sourcing, active & passive components procurement
🟢 AOI, X-Ray, ICT and functional testing
🟢 Conformal coating, wire harness & Box Build assembly
🟢 Prototype quick turn and mass volume manufacturing
🟢 IPC-A-610 compliant, full production traceability
PCBA Order Requirements
🟢 Gerber files, BOM list and component specifications
🟢 PCB bare board data or ready fabricated PCBs
🟢 Assembly drawing, placement files & special notes
🟢 Test requirements, functional test procedure if available
🟢 Order quantity: prototype or mass production
Our PCBA Deliverables
🟢 Fully assembled & tested PCBA boards
🟢 AOI / X-ray / Functional test reports
🟢 BOM procurement documents & material trace records
🟢 First Article Inspection (FAI) report upon request
🟢 Final packing and shipping documents
With Volectronics as your partner, you can get:
Box Build and Product Assembly
Cable Assembly & Wire Harness Manufacture
Conformal Coating and Functional Test
Electro-Mechanical Assemblies
Testing, Inspection and Repair Services
BGA Assembly and Rework
Rapid Prototyping to Mixed Volume Production
Frequently Asked Questions
Q: What assembly services do you offer for PCBA?
A: We provide SMT surface mount, THT through-hole soldering and mixed SMT+THT assembly. Our capabilities cover fine-pitch component mounting, BGA assembly, conformal coating, wire harness assembly and full box build integration for prototype and mass production.
Q: Can you help source electronic components for PCBA manufacturing?
A: Yes. We offer full BOM management and component sourcing service. We procure active, passive and electromechanical parts from verified suppliers, and provide material traceability for all components.
Q: What quality inspection and testing methods are available for assembled boards?
A: We use AOI optical inspection, X-ray inspection for BGA joints, ICT testing and custom functional testing. All assembly work follows IPC-A-610 standards, and we can supply inspection & FAI reports on request.
Q: What documents are required for PCBA quotation and assembly?
A: Please provide Gerber files, BOM list, assembly drawing, pick & place file, plus your test requirements and order quantity. You can supply your own bare PCBs or let us manufacture bare boards together as a turnkey solution.
Q: Can you handle small prototype orders as well as large volume production?
A: Yes. We support fast-turn prototype PCBA and mixed-volume mass manufacturing. We also provide BGA rework, repair service and after-production technical support for your projects.
